Fluorogreen®

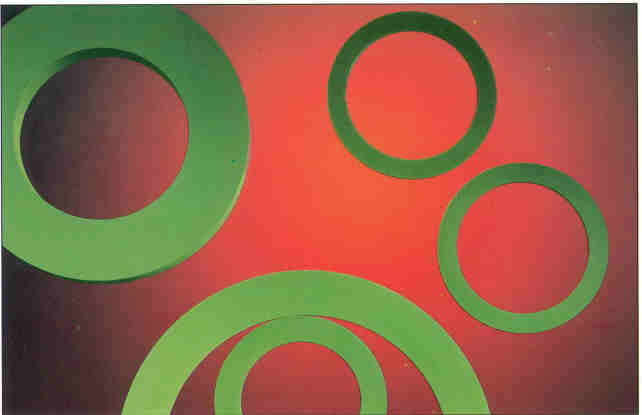

Fluorogreen
E-110 is
tested and proven unsurpassed when low deformation material is required.
It is a chemically modified material, and uses the same manufacturing
process as Fluorogreen E-600, giving the user ultra-low deformation
characteristics at temperatures in the range of 500 degrees F. It is
the recommended material for use in sodium hydroxide (black liquor)
applications.

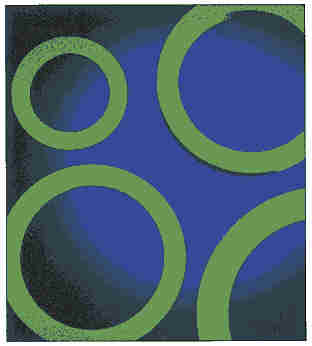

Fluorogreen
E-600
matches
E-110 in reliability when low deformation material is needed.
E-600 is particularly suited for use in very caustic environments.
It was originally developed 30 years ago for NASA's liquid oxygen
and liquid nitrogen applications and continues today, unequaled
in performance in the ever-changing, high tech space industry.
E-600 is a tested and proven superior cryogenic material.
|

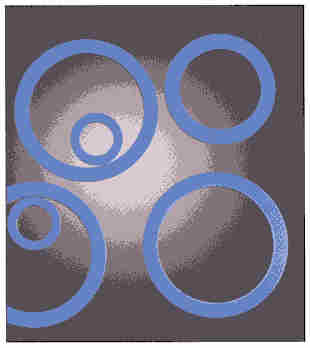

Fluoroblue
E-140 is
unmatched when high compressibility is needed. An example is glass
piping systems. The formulation of P.T.E.E. and micro glass beads
makes E-140 exceptionally effective when lower bolt loads are
needed to effect a perfect seal. E-140 gives the user high tensile
stength and excellent elongation.
|
|
|
|

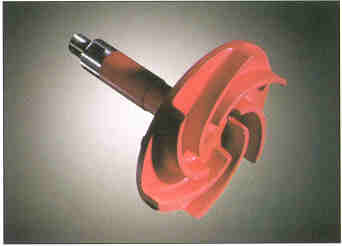

Fluoromaroon
E-250
is a chemically modified, unfilled material. Its properties, over
non-modified materials, are major improvements including: extremely
low deformation, excellent welding capabilities, very high tensile
strength and elongation, ultra low void ration and high dielectric
strength. Fluoromaroon E-250 is an excellent material in high temperature
applications. It is especially effective for seals in rotating equipment
and is used to encapsulate metallic components for protection against
corrosion. |

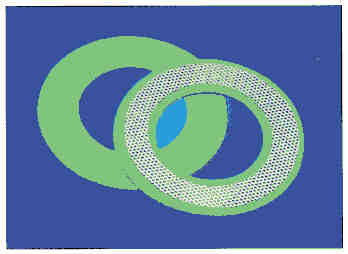

Fluoroflange
Gaskets combine Fluorogreen's ultra high performance materials
with a perforated stainless steel insert. This combination results
in the finest sealing P.T.F.E. gasket available. Unlike competitive
gaskets, the Fluoroflange stainless steel insert is totally encapsulated,
exposing no part of the insert to chemical attack. Fluoroflange
gaskets give the user a high degree of safety and blow-out resistance.
Fluoroflange gaskets are manufactured 3/32" thick in a full
range of flange sizes and pressure ratings. |

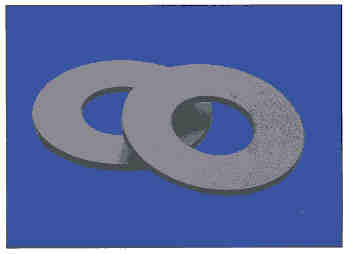

Fluoroblack
E-900 is chemically modified containing a specially formulated
electrocarbon fiber material. E-900 is an excellent material for
prolonged service against high concentrations of hydrofluoric acid.
This combination of materials may make Fluoroblack E-900 the lowest
deforming P.T.F.E. based material available. E-900 is also used
to encapsulate perforated stainless steel inserts for use in our
Fluoroflange flange gaskets.
|
ASTM
Method
|
Physical
Properities
|
Fluoro-
green
110
|
Fluoro-green
600
|
Fluoro-blue
E-140
|
Fluor-
maroon
E-250
|
Fluoro-
black
E-900
|
F-37
|
Sealability
|
.007
|
.009
|
.007
|
.002
|
.001
|
F-38
|
Creep relaxation, %
|
6.0
|
6.0
|
30.0
|
42.0
|
17
|
F-36
|
Compressibility, range %
|
3-4
|
3-4
|
20-35
|
6-7
|
5-7
|
F-152
|
Tensile strength, PSI
|
2307
|
2660
|
2100
|
4521
|
2400
|
D-638
|
Elongation, %
|
450
|
300
|
372
|
650
|
150
|
D-792
|
Specific gravity
|
2.02
|
2.30
|
2.10
|
2.16
|
2.11
|
D-1700
|
Hardness, Shore D-2
|
61
|
61
|
57
|
59
|
66
|
This is a
general guide and should not be the sole means of selecting or
rejecting these materials. The above data was independently compiled
by: Texas Engineering Experiment Station, Materials and Structures
Laboratory.
Ordering Information
- Fluorogreen E-600
- Fluoroblue E-140
- Fluoroblack E-900
- Fluorogreen E-110
- Fluoromaroon E-250
- Fluoroflange Gaskets E-600
Skived sheet
- .005" - .250" thick
- .5" - 50" wide x continuous
|
Molded Sheet
- 3/16" thick - 4" thick
- 24" x 24", 36" x 36",
48" x 48"
Special sizes on request
|
Temperature and
pressure
All Fluorogreen materials have a temperature rating
of -350F to +500F and a pressure rating of 1200 PSI (E-140, 800
PSI).
Material |
Pressure |
Temperature |
Color |
F. Green
E-110 |
1200 PSI
|
-350F to +500F
|
Green
|
F. Green
E-600 |
1200 PSI
|
-350F to +500F
|
Green
|
F. Maroon E-250 |
1200 PSI
|
-350F to +500F
|
Maroon
|
F. Black
E-900 |
1400 PSI
|
-350F to +500F
|
Black
|
F. Blue
E-140 |
800 PSI
|
-350F to +500F
|
Blue
|
|
Royce E. Wisenbaker
Engineering Research Center, Texas A& M University System,
College Station, Texas 77843, 409-845-7328 and other independent
sources.
Molded Rod
Molded tubing
- 1500 different sizes
- 1 3/8" dia. - 39" dia.
- Custom pre-forms with minimal or no tooling
charge
- Standard and non-standard gaskets up
to 20' dia.
- Machined parts (made to specification)
- Bearing and slide pads (made to specification)
|
- WARNING: The data
set forth in this brochure is typical. The user's specific application
should be combined with independent study and evaluation for
the material's suitability. For recommendations please contact
UFC Fluorogreen. Selecting the wrong sealing products could
result in property damage and/or personal injury. We assume
no responsibility for erros contained in this brochure.
CONTAINS NO ASBESTOS
ALL UFC Fluorogreen products are made in the
USA.
Fluorogreen E-600, Fluorogreen E-110, Fluoromaroon
E-250, Fluoroblack E-900 and Fluoroflange are registered trademarks.
|
BLACKHAWK
RUBBER & GASKET, INC.
Is so confident in the performance of our Fluorogreen family of products
that we will pay you
$50.00
For each instance of our
Fluorogreen high performance gasketing material being put in verifiable
test at a major chemical plant or pulp & paper mill in the U.S.
or Canada. We will supply a test gasket to your specifications at no
charge. Gaskets must be direct replacement for Garlock 3500, 3504, or
3510 or equivalents. Contact us for details.
